AR580 Pro

Huawei AR580 Pro — Enterprise-Grade High Capacity Combo Router. Manufacturer reference.

Huawei · Full reference: AR580 Pro

Ask about this model

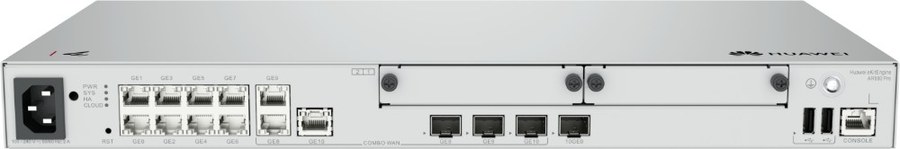

Huawei AR580 Pro Enterprise-Grade High Capacity Combo Router
Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
Enterprise-Grade High Capacity Combo Router
Huawei description
AR580Pro (AR580-11ST1X, 3*GE combo WAN, 8*GE LAN, 1*10GE(SFP+)LAN, 2*USB 2.0, 2*SIC, built-in AC power)
Part number
02357FKH
Huawei category
Router / AR500 Series
Installation type
Rack,Work bench,Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with packaging [kg(lb)]
4.6 (10.12)
Weight without packaging [kg(lb)]
3.2 (7.04)
Typical power consumption [W]
27
Maximum power consumption [W]
33
Power supply mode
AC built-in
Rated input voltage [V]
100 V to 240 V, 50 Hz/60 Hz
Maximum input current [A]
2
Maximum output power [W]
70
Input voltage range [V]
90 V to 264 V, 47 Hz to 63 Hz
Types of fans
Built-in
Long-term operating temperature [°C(°F)]
0°C to 45°C (32°F to 113°F); Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
LAN ports
8 x GE electrical interfaces, 1 x 10GE optical interface
WAN ports
3 x GE combo interfaces
GE RJ45
8 (1G/100M/10M)
GE Combo (RJ45 + SFP)
3 (RJ45: 1G/100M/10M) (SFP: 1G/100M)
Number of fan modules
1
Heat dissipation mode
Air cooling
10G SFP+
1 (10G/1G)

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
