AR580

Huawei AR580 — Enterprise-Grade 2.5GE Combo Router. Manufacturer reference.

Huawei · Full reference: AR580

Ask about this model
Huawei AR580 Enterprise-Grade 2.5GE Combo Router

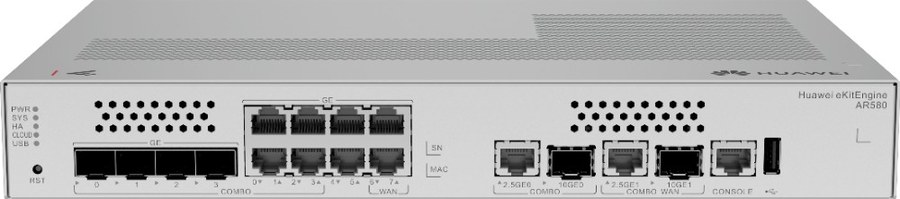

Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
Enterprise-Grade 2.5GE Combo Router
Huawei description
AR580 (AR580-8ST2NX, 1*10GE(SFP+)/2.5GE Combo WAN, 2*GE WAN, 1*10GE(SFP+)/2.5GE Combo LAN, 4*GE Combo LAN, 2*GE LAN, 1*USB2.0, built-in AC power, Fanless)
Part number
50010882
Huawei category
Router / AR500 Series
Installation type
Rack, Work bench
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 215 mm (1.72 in. x 12.6 in. x 8.46 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90 mm x 465 mm x 360 mm (3.54 in. x 18.31 in. x 14.17 in.)
Weight with packaging [kg(lb)]
2.83 (6.24)
Weight without packaging [kg(lb)]
1.90 (4.19)
Typical power consumption [W]
12
Maximum power consumption [W]
15
Power supply mode
AC built-in
Rated input voltage [V]
100 V to 240 V, 50 Hz/60 Hz
Maximum input current [A]
0.8
Maximum output power [W]
32
Input voltage range [V]
90 V to 264 V, 47 Hz to 63 Hz
Types of fans
None
Long-term operating temperature [°C(°F)]
0°C to 45°C (32°F to 113°F); Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]
-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
LAN ports
1 x 10GE optical/2.5GE electrical combo, 4 x GE combo, 2 x GE electrical
WAN ports
1 x 10GE optical/2.5GE electrical combo, 2 x GE electrical
GE RJ45
4 (1G/100M/10M)
GE Combo (RJ45 + SFP)
4 (RJ45: 1G/100M/10M) (SFP: 1G/100M)
Combo (2.5GE RJ45 + 10GE SFP+)
2 (RJ45: 2.5G/1G/100M) (SFP+: 10G/1G)

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
