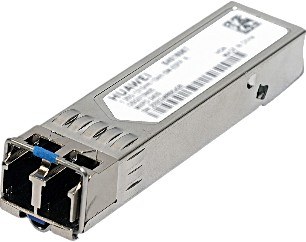

Huawei eSFP-FE-LX-SM1310 — eSFP Optical Transceiver SM 15KM. Manufacturer reference.
Huawei · Full reference: eSFP-FE-LX-SM1310
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- eSFP Optical Transceiver SM 15KM
- Huawei description
- Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
- Part number
- 02315205
- Level-1 category
- FE SFP/eSFP Optical Modules
- Form Factor
- eSFP
- Application standard
- Non-standard
- Connector type
- LC
- Optical fiber type
- SMF
- Working case temperature[°C(°F)]
- 0°C to 70°C (32°F to 158°F)
- Digital diagnostic monitoring (DDM)
- Supported
- Transmission rate[bit/s]
- 100 Mbit/s
- Target transmission distance[km]
- Single-mode fiber: 15 km
- Center wavelength[nm]
- 1310
- Maximum Tx optical power[dBm]
- -8.0
- Minimum Tx optical power[dBm]
- -15.0
- Minimum extinction ratio[dB]
- 8.2
- Rx sensitivity[dBm]
- -28.0
- Overload power [dBm]
- -8.0
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
