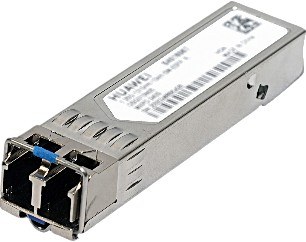

Huawei eSFP-GE-SX-MM850 — SFP Module 1G Multimode Duplex 550M. Manufacturer reference.
Huawei · Full reference: eSFP-GE-SX-MM850
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- SFP Module 1G Multimode Duplex 550M
- Huawei description
- Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
- Part number
- 02315204
- Level-1 category
- GE eSFP Optical Modules
- Form Factor
- eSFP
- Application standard
- 1000BASE-SX
- Connector type
- LC
- Optical fiber type
- MMF
- Working case temperature[°C(°F)]
- -20°C to +85°C (-4°F to +185°F)
- Digital diagnostic monitoring (DDM)
- Supported
- Transmission rate[bit/s]
- 1 Gbit/s
- Target transmission distance[km]
- Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km; Multimode fiber (OM1): 0.275 km; Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km; Multimode fiber (OM2): 0.55 km; Multimode fiber (OM3/OM4): 1 km
- Center wavelength[nm]
- 850
- Maximum Tx optical power[dBm]
- -2.5
- Minimum Tx optical power[dBm]
- -9.5
- Minimum extinction ratio[dB]
- 9
- Rx sensitivity[dBm]
- -17.0
- Overload power [dBm]
- 0
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
