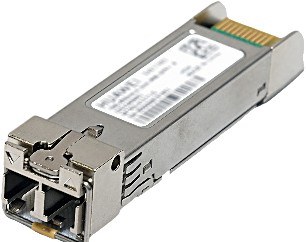

Huawei OGSC10DD0 — eSFP (Industry) Optical Transceiver 10KM. Manufacturer reference.
Huawei · Full reference: OGSC10DD0
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- eSFP (Industry) Optical Transceiver 10KM
- Huawei description
- Optical Transceiver, eSFP(industry), 1310nm, 1.25Gb/s, -9.5~-3dBm, -20dBm, LC, single-mode, 10km
- Part number
- 02310LJH
- Level-1 category
- GE eSFP Optical Modules,Industrial Optical Modules
- Form Factor
- eSFP
- Application standard
- 1000BASE-LX10/LH
- Connector type
- LC
- Optical fiber type
- SMF
- Working case temperature[°C(°F)]
- -40°C to +85°C (-40°F to +185°F)
- Digital diagnostic monitoring (DDM)
- Supported
- Transmission rate[bit/s]
- 1 Gbit/s
- Target transmission distance[km]
- Single-mode fiber: 10 km
- Center wavelength[nm]
- 1310
- Maximum Tx optical power[dBm]
- -3.0
- Minimum Tx optical power[dBm]
- -9.0
- Minimum extinction ratio[dB]
- 9.5
- Rx sensitivity[dBm]
- -19
- Overload power [dBm]
- -3.0
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
