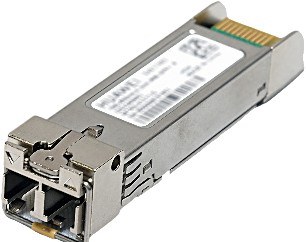

Huawei OSX010000 — SFP Module Single Mode 10G 10KM. Manufacturer reference.
Huawei · Full reference: OSX010000
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- SFP Module Single Mode 10G 10KM
- Huawei description
- Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
- Part number
- 02313URK / 02318170
- Level-1 category
- 10GE SFP+ Optical Modules
- Form Factor
- SFP+
- Application standard
- 10GBASE-LR
- Connector type
- LC
- Optical fiber type
- SMF
- Working case temperature[°C(°F)]
- 0°C to 70°C (32°F to 158°F)
- Digital diagnostic monitoring (DDM)
- Supported
- Transmission rate[bit/s]
- 10 Gbit/s
- Target transmission distance[km]
- Single-mode fiber: 10 km
- Center wavelength[nm]
- 1310
- Maximum Tx optical power[dBm]
- 0.5
- Minimum Tx optical power[dBm]
- -8.2
- Minimum extinction ratio[dB]
- 3.5
- Rx sensitivity[dBm]
- -12.6
- Overload power [dBm]
- 0.5
Selection notes
- Specifications are from the manufacturer's official product page.
- Huawei lists more than one part number under this model name (02313URK, 02318170). Confirm the part number supplied.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
