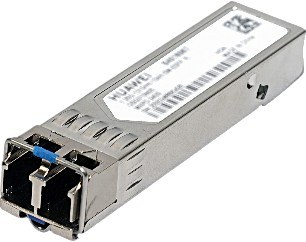

Huawei S-SFP-GE-LH40-SM1550 — eSFP Single Mode GE Optical Transceiver 40KM. Manufacturer reference.
Huawei · Full reference: S-SFP-GE-LH40-SM1550
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- eSFP Single Mode GE Optical Transceiver 40KM
- Huawei description
- Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
- Part number
- 02317347
- Level-1 category
- GE eSFP Optical Modules
- Form Factor
- eSFP
- Application standard
- Non-standard
- Connector type
- LC
- Optical fiber type
- SMF
- Working case temperature[°C(°F)]
- 0°C to 70°C (32°F to 158°F)
- Digital diagnostic monitoring (DDM)
- Supported
- Transmission rate[bit/s]
- 1 Gbit/s
- Target transmission distance[km]
- Single-mode fiber: 40 km
- Center wavelength[nm]
- 1550
- Maximum Tx optical power[dBm]
- 0
- Minimum Tx optical power[dBm]
- -5.0
- Minimum extinction ratio[dB]
- 9
- Rx sensitivity[dBm]
- -22
- Overload power [dBm]
- -3.0
