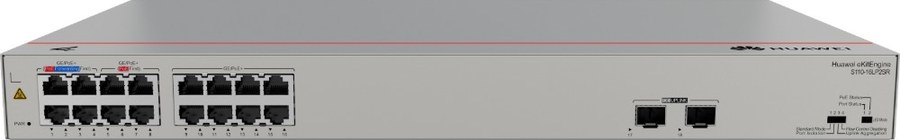

S110-16LP2SR

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

16 x 10/100/1000BASE-T ports, 2 x GE SFP ports | PoE+ | Packet forwarding rate: 26.78 Mpps | Switching capacity: 36 Gbit/s

Part number

98012197

Huawei category

Switch / S110 Series

Installation type

Rack mounting,Desk mounting,Wall mounting

Maximum PoE power consumption [W]

124

GE RJ45

16 (PoE+) (1G/100M/10M)

Packet forwarding rate

26.78 Mpps

Switching capacity

36 Gbit/s

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)

Input voltage range [V]

AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply mode

AC built-in

Maximum power consumption [W]

Without PoE: 22.0 W Full PoE load: 160.0 W (PoE: 124 W)

Weight with packaging [kg(lb)]

3.7 kg (8.16 lb)

Weight without packaging [kg(lb)]

3.0 kg (6.61 lb)

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S110-16LP2SR
• Huawei eKit official product page
• Huawei eKitEngine S110 Series Switch DataSheet
• S110-16LP2SR Quick Start

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
