S110-16T2S

Huawei S110-16T2S — 16-Port Gigabit Unmanaged Switch. Manufacturer reference.

Huawei · Full reference: S110-16T2S

Ask about this model

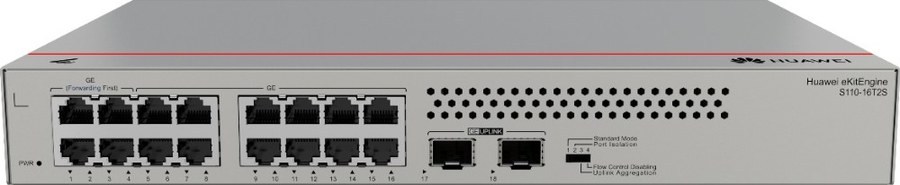

Huawei S110-16T2S 16-Port Gigabit Unmanaged Switch
Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
16-Port Gigabit Unmanaged Switch
Huawei description
16 x 10/100/1000BASE-T ports, 2 x GE SFP ports | Packet forwarding rate: 26.78 Mpps | Switching capacity: 36 Gbit/s
Part number
98012200
Huawei category
Switch / S110 Series
Switching capacity
36 Gbit/s
Packet forwarding rate
26.78 Mpps
GE RJ45
16 (1G/100M/10M)
Certification
EMC certification; Safety certification; Manufacturing certification
Chassis material
Metal
Static power consumption [W]
3
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 460.0 mm x 280.0 mm (3.54 in. x 18.11 in. x 11.02 in.)
Installation type
Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]
1.74 (3.84)
Weight with packaging [kg(lb)]
2.30 kg (5.07 lb)
Typical power consumption [W]
11.0
Maximum power consumption [W]
12
Long-term operating temperature [°C(°F)]
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Power supply mode
AC built-in
Input voltage range [V]
AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Power supply surge protection [kV]
±2 kV in differential mode, ±4 kV in common mode
Heat dissipation mode
Natural heat dissipation

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
