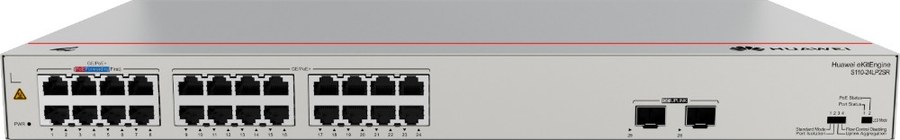

Huawei S110-24LP2SR — Ethernet Switch. Manufacturer reference.
Huawei · Full reference: S110-24LP2SR
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Ethernet Switch
- Huawei description
- 24 x 10/100/1000BASE-T ports, 2 x GE SFP ports | PoE+ | Packet forwarding rate: 38.69 Mpps | Switching capacity: 52 Gbit/s
- Part number
- 98012198
- Huawei category
- Switch / S110 Series
- Switching capacity
- 52 Gbit/s
- Packet forwarding rate
- 38.69 Mpps
- GE RJ45
- 24 (PoE+) (1G/100M/10M)
- PoE
- Supported
- Maximum PoE power consumption [W]
- 124
- Certification
- EMC certification; Safety certification; Manufacturing certification
- Chassis material
- Metal
- Static power consumption [W]
- 13
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)
- Installation type
- Rack mounting,Desk mounting,Wall mounting
- Weight without packaging [kg(lb)]
- 3.2 kg (7.1 lb)
- Weight with packaging [kg(lb)]
- 3.7 kg (8.16 lb)
- Typical power consumption [W]
- 24
- Maximum power consumption [W]
- Without PoE: 24 W; Full PoE load: 165 W (PoE: 124 W)
- Long-term operating temperature [°C(°F)]
- 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
- Power supply surge protection [kV]
- Differential mode: ±6 kV; common mode: ±6 kV
- Heat dissipation mode
- Natural heat dissipation
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
- ISD datasheet (PDF): Huawei S110-24LP2SR
- Huawei eKit official product page
- Huawei eKitEngine S110 Series Switch DataSheet
- S110-24LP2SR Quick Start
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
