S110-24T2SR

Huawei S110-24T2SR — 24-Port Gigabit Unmanaged Switch. Manufacturer reference.

Huawei · Full reference: S110-24T2SR

Ask about this model
Huawei S110-24T2SR 24-Port Gigabit Unmanaged Switch

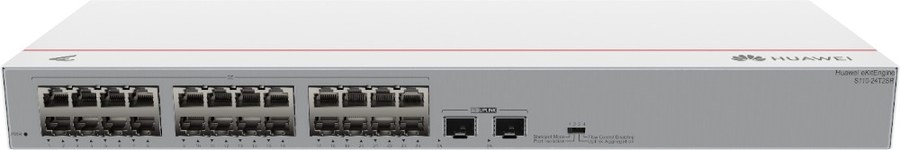

Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
24-Port Gigabit Unmanaged Switch
Huawei description
24 x 10/100/1000BASE-T ports, 2 x GE SFP ports | Packet forwarding rate: 38.69 Mpps | Switching capacity: 52 Gbit/s
Part number
98012196
Huawei category
Switch / S110 Series
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.40 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 167.0 mm (1.72 in. x 17.40 in. x 6.57 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Chassis height [U]
1
Installation type
Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]
1.8 (3.97)
Weight with packaging [kg(lb)]
2.3 (5.07)
Typical power consumption [W]
16
Maximum power consumption [W]
17
Static power consumption [W]
5
100% power consumption [W]
16
Maximum number of physical ports on the entire device
26
Maximum number of GE ports
26
Maximum number of FE ports
26
Long-term operating temperature [°C(°F)]
0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
AC built-in
Rated input voltage [V]
AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]
AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]
0.8 A
Service port surge protection [kV]
Common mode: ±1 kV
Power supply surge protection [kV]
Differential mode: ±6 kV; common mode: ±6 kV
Heat dissipation mode
Natural heat dissipation
Certification
EMC certification; Safety certification; Manufacturing certification

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
