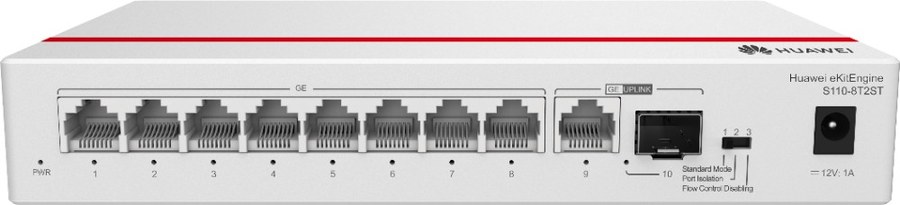

Huawei S110-8T2ST — 8-Port Gigabit Unmanaged Switch. Manufacturer reference.
Huawei · Full reference: S110-8T2ST
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- 8-Port Gigabit Unmanaged Switch
- Huawei description
- 8 x 10/100/1000BASE-T ports, 1 x GE SFP port, 1 x 10/100/1000BASE-T port | Packet forwarding rate: 14.88 Mpps | Switching capacity: 20 Gbit/s
- Part number
- 98012199
- Huawei category
- Switch / S110 Series
- Dimensions without packaging (H x W x D)
- Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.)
- Chassis height
- 0.8
- Installation type
- Desk mounting,Wall mounting
- Weight without packaging
- 1.11 (2.45)
- Typical power consumption
- 11
- Static power consumption
- 4
- 100% power consumption
- 11
- Maximum number of physical ports on the entire device
- 10
- Long-term operating temperature
- 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
- Restriction on the operating temperature variation rate
- When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
- Storage temperature
- –40°C to +70°C (–40°F to +158°F)
- Long-term operating relative humidity
- 5% RH to 95% RH (non-condensing)
- Long-term operating altitude
- 0–5000 m (0–16404 ft.)
- Storage altitude
- 0-5000 m (0-16404 ft.)
- Power supply mode
- Power adapter
- Rated input voltage
- Power adapter input: 100–240 V AC; 50/60 Hz; Power adapter output: 56 V DC
- Input voltage range
- Power adapter input: 90 V AC to 264 V AC; 47 Hz to 63 Hz
- Service port surge protection
- Common mode: ±4 kV
- Power supply surge protection
- Differential mode: ±6 kV; common mode: ±6 kV
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
- ISD datasheet (PDF): Huawei S110-8T2ST
- Huawei eKit official product page
- Huawei eKitEngine S110 Series Switch DataSheet
- S110-8T2ST Quick Start
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
