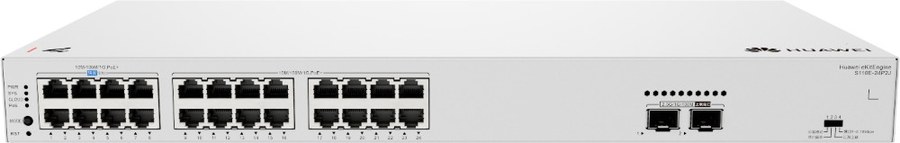

S110E-24P2J

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

S110E-24P2J (24*10/100/1000BASE-T ports(400W PoE+), 2*2.5GE SFP ports, built-in AC power)

Part number

98013160

Huawei category

Switch / S110 Series

Static power consumption [W]

15.74

GE RJ45

24 (PoE+) (1G/100M/10M)

2.5G SFP

2 (2.5G/1G/100M)

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

3.23 kg (7.12 lb)

Weight with packaging [kg(lb)]

3.86 (8.51)

Typical power consumption [W]

30.32

Typical heat dissipation [BTU/hour]

103.44

Maximum power consumption [W]

Without PoE: 32.42 W; Full PoE load: 482.68 W (PoE: 400 W)

Maximum heat dissipation [BTU/hour]

Without PoE: 110.63; Full PoE load: 1646.95

Power supply mode

AC built-in

Types of fans

Built-in

Heat dissipation mode

Air cooling

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Supported

Power consumption at 100% traffic [W]

30.92

Maximum PoE power consumption [W]

400

PoE+ power interfaces

24

Full load PoE power consumption 30W (802.3at)

13

Full load PoE power consumption 15.4W (802.3af)

24

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S110E-24P2J
• Huawei eKit official product page
• Huawei eKitEngine S110E Series Switches Datasheet

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
