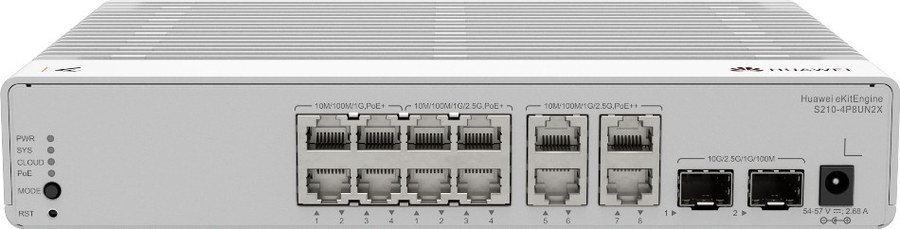

S210-4P8UN2X

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

S210-4P8UN2X (4*10/100/1000BASE-T ports(PoE+), 8*10/100/1000/2.5GBASE-T ports(4*PoE+, 4*PoE++), 2*10GE SFP+ ports, 120W PoE, 1*220V power adapter, Fanless)

Part number

98013198

Huawei category

Switch / S210 Series

Static power consumption [W]

14.9

GE RJ45

4 (PoE+) (1G/100M/10M)

2.5GE RJ45

8 (4 PoE+; 4 PoE++) (2.5G/1G/100M/10M)

10G SFP+

2 (10G/2.5G/1G/100M)

Dimensions without packaging (H x W x D) [mm (in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)

Dimensions with packaging (H x W x D) [mm (in.)]

94.0 mm x 310.0 mm x 350.0 mm (3.70 in. x 12.20 in. x 13.78 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting,Network Box

Weight without packaging [kg (lb)]

2.02 kg (4.45 lb)

Weight with packaging [kg (lb)]

2.52 kg (5.56 lb)

Typical power consumption [W]

24.6

Typical heat dissipation [BTU/hour]

83.9

Maximum power consumption [W]

Without PoE: 24.5 W (device only)/29.9 W (device + adapter); Full PoE load: 164.7 W (PoE: 125 W)

Maximum heat dissipation [BTU/hour]

Without PoE: 83.6 (device only)/102.1 (device + adapter); Full PoE load: 561.9 (PoE: 426.5)

Long-term operating temperature [°C (°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Restriction on the operating temperature variation rate [°C (°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).; Devices cannot start when the temperature is lower than 0°C (32°F).

Storage temperature [°C (°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

Power adapter

Rated input voltage [V]

Power adapter input: 170 V AC to 240 V AC; 50/60 Hz; Power adapter output: 54 V DC

Input voltage range [V]

Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz

Maximum input current [A]

2.78 A

Power consumption at 100% traffic [W]

24.9

Maximum PoE power consumption [W]

125

PoE+ power interfaces

8

PoE++ power interfaces

4

Full load PoE power consumption 30W (802.3at)

4

Full load PoE++ power consumption 60W (802.3bt)

2

Full load PoE power consumption 15.4W (802.3af)

8

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S210-4P8UN2X
• Huawei eKit official product page
• Huawei eKitEngine S210 Series Switches Datasheet

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
