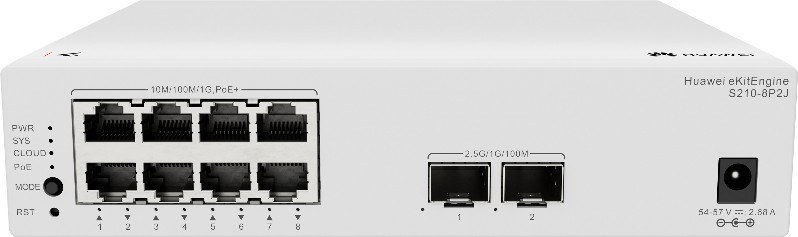

S210-8P2J

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

S210-8P2J (8*10/100/1000BASE-T ports (128W PoE+), 2*2.5GE SFP ports, with 1*220 V AC power adapter, Fanless)

Part number

98012922 / 98012922-001

Huawei category

Switch / S210 Series

GE RJ45

8 (PoE+) (1G/100M/10M)

2.5G SFP

2 (2.5G/1G/100M)

PoE

Supported

Maximum PoE power consumption [W]

128

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

7.15

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 195 mm x 160 mm (1.72 in. x 7.68 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 195 mm x 166.2 mm (1.72 in. x 7.68 in. x 6.54 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

116.0 mm x 285.0 mm x 300.0 mm (4.57 in. x 11.22 in. x 11.81 in.)

Installation type

Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

1.60 kg (3.53 lb)

Weight with packaging [kg(lb)]

2.08 kg (4.59 lb)

Typical power consumption [W]

16.74

Maximum power consumption [W]

Without PoE: 14.60 W (device), 17.59 W (device + adapter); Full PoE load: 161.02 W (PoE: 128 W)

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

Power adapter

Input voltage range [V]

Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]

±4 kV in differential mode and ±4 kV in common mode

Heat dissipation mode

Natural heat dissipation

PoE+ power interfaces

8

Full load PoE power consumption 30W (802.3at)

4

Full load PoE power consumption 15.4W (802.3af)

8

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012922, 98012922-001). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S210-8P2J
• Huawei eKit official product page
• Huawei eKitEngine S210 Series Switches Datasheet
• S210-8P2J Quick Start

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
