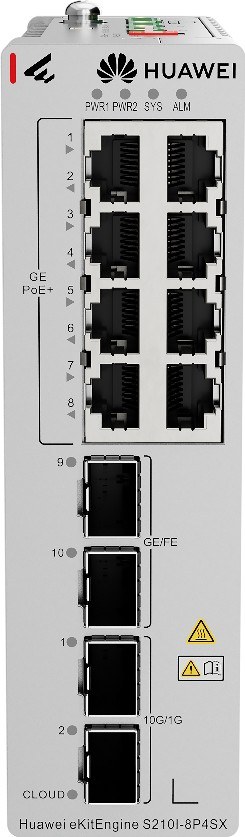

S210I-8P4SX

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

S210I-8P4SX (8*10/100/1000BASE-T ports, 2*GE SFP ports, 2*10GE SFP+ ports, PoE+, DIN Rail Mounting, Dual redundant 48 to 57V DC supply, Fanless, Without power module)

Part number

98012933 / 98012933-001

Huawei category

Switch / S210I Series

Switching capacity

60Gbps

Packet forwarding rate

44.6Mpps

GE RJ45

8 (PoE+) (1G/100M/10M)

GE SFP

2 (1G/100M)

10G SFP+

2 (10G/1G)

PoE

Supported

Maximum PoE power consumption [W]

240 W; If the 240 W power module (PAC240S56-CN) recommended by Huawei is used, a maximum of 220 W PoE power is available. To prevent power failures caused by overload, you need to set the maximum PoE power to a value less than or equal to 220 W through the web system.

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

9.52

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.)

Installation type

Rack mounting,DIN rail

Weight without packaging [kg(lb)]

0.986 kg (2.17 lb)

Weight with packaging [kg(lb)]

1.35 kg (2.98 lb)

Typical power consumption [W]

15.56

Maximum power consumption [W]

Without PoE: 16.24 W; Full PoE load: 257.6 W (PoE: 240 W)

Long-term operating temperature [°C(°F)]

0–1800 m (0–5906 ft.) altitude, industrial optical modules: Sealed cabinet: –40°C to +60°C (–40°F to +140°F); Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F); Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

DC external

Input voltage range [V]

DC input: 54 V DC to 57 V DC (PoE/PoE+); 48 V DC (PoE)

Power supply surge protection [kV]

DC power: ±2 kV in common mode and ±1 kV in differential mode

Heat dissipation mode

Natural heat dissipation

Redundant power supply

1+1

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012933, 98012933-001). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S210I-8P4SX
• Huawei eKit official product page
• HUAWEI eKitEngine S210I Series Extended-Temperature Switches Datasheet
• S210I-8P4SX Quick Start

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
