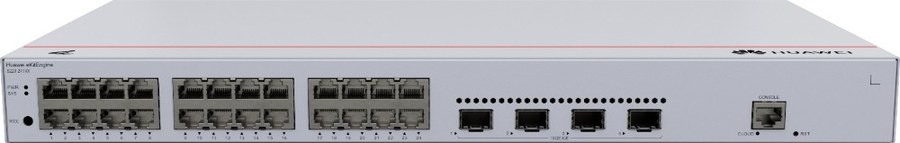

Huawei S220-24T4X — 24-Port Gigabit L2 Managed Switch. Manufacturer reference.
Huawei · Full reference: S220-24T4X
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- 24-Port Gigabit L2 Managed Switch
- Huawei description
- 24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports | built-in AC power | Packet forwarding rate: 95 Mpps | Switching capacity: 128 Gbit/s
- Part number
- 98012375
- Huawei category
- Switch / S220 Series
- Switching capacity
- 128 Gbit/s
- Packet forwarding rate
- 95 Mpps
- GE RJ45
- 24 (1G/100M/10M)
- 10G SFP+
- 4 (10G/1G)
- Certification
- EMC certification; Safety certification; Manufacturing certification
- Chassis material
- Metal
- Static power consumption [W]
- 19.00
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
- Installation type
- Rack mounting,Desk mounting,Wall mounting
- Weight without packaging [kg(lb)]
- 2.32 kg (5.11 lb)
- Weight with packaging [kg(lb)]
- 3.44 kg (7.58 lb)
- Typical power consumption [W]
- 27.27
- Maximum power consumption [W]
- 35.04
- Number of fans modules
- 1
- Long-term operating temperature [°C(°F)]
- -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
- Power supply surge protection [kV]
- Differential mode: ±6 kV; common mode: ±6 kV
- Types of fans
- Built-in
- Heat dissipation mode
- Air cooling for heat dissipation, intelligent fan speed adjustment
- Airflow direction
- Air intake from left and front, air exhaustion from right
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
