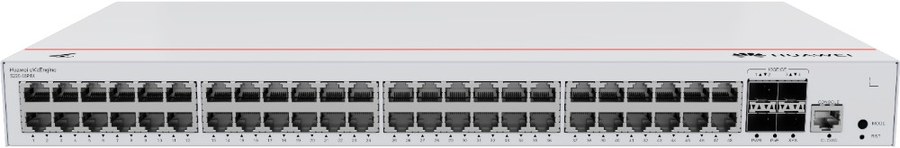

S220-48P4X

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports | 380W PoE+ | built-in AC power | Packet forwarding rate: 131 Mpps | Switching capacity: 176 Gbit/s

Part number

98012378 / 98013006

Huawei category

Switch / S220 Series

Switching capacity

176 Gbit/s

Packet forwarding rate

131 Mpps

GE RJ45

48 (PoE+) (1G/100M/10M)

10G SFP+

4 (10G/1G)

PoE

Supported

Maximum PoE power consumption [W]

380

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

34.04

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

3.24 (7.14)

Weight with packaging [kg(lb)]

4.29 kg (9.46 lb)

Typical power consumption [W]

49.44

Maximum power consumption [W]

Without PoE: 64.7 W; Full PoE load: 462.80 W (PoE: 380 W)

Number of fans modules

2

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and air exhaust from right

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012378, 98013006). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
