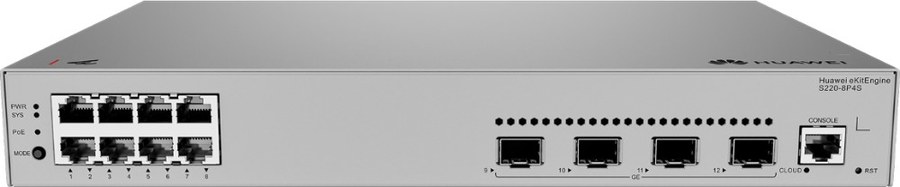

S220-8P4S

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

8 x 10/100/1000BASE-T, 4 x GE SFP ports | 125W PoE+ | built-in AC power | Packet forwarding rate: 18 Mpps | Switching capacity: 24 Gbit/s

Part number

98012552

Huawei category

Switch / S220 Series

Switching capacity

24 Gbit/s

Packet forwarding rate

18 Mpps

GE RJ45

8 (PoE+) (1G/100M/10M)

GE SFP

4 (1G)

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

17.19

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.5 (5.51)

Weight with packaging [kg(lb)]

3.05 kg (6.72 lb)

Typical power consumption [W]

19.99

Maximum power consumption [W]

Without PoE: 25.09 W; Full PoE load: 166.65 W (PoE: 125 W)

Number of fans modules

1

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
