S220S-24T4J

Huawei S220S-24T4J — 24-Port Gigabit L2 Smart Managed Switch. Manufacturer reference.

Huawei · Full reference: S220S-24T4J

Ask about this model

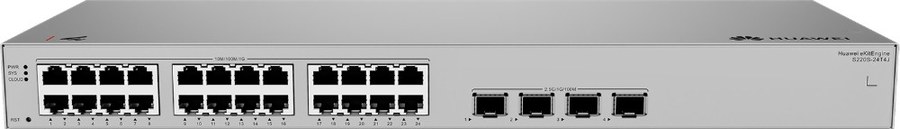

Huawei S220S-24T4J 24-Port Gigabit L2 Smart Managed Switch
Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
24-Port Gigabit L2 Smart Managed Switch
Huawei description
24 x 10/100/1000BASE-T ports, 4 x 2.5GE SFP ports | Packet forwarding rate: 51 Mpps | Switching capacity: 68 Gbit/s
Part number
98012502 / 98012502-001
Huawei category
Switch / S220S Series
Switching capacity
68 Gbit/s
Packet forwarding rate
51 Mpps
GE RJ45
24 (1G/100M/10M)
2.5G SFP
4 (2.5G/1G/100M)
Certification
EMC certification; Safety certification; Manufacturing certification
Chassis material
Metal
Static power consumption [W]
11.14
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 167 mm (1.72 in. x 17.40 in. x 6.57 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
Installation type
Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]
1.97 (4.34)
Weight with packaging [kg(lb)]
2.76 kg (6.08 lb)
Typical power consumption [W]
21.32
Maximum power consumption [W]
21.9
Long-term operating temperature [°C(°F)]
–5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Power supply mode
AC built-in
Input voltage range [V]
AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Power supply surge protection [kV]
±4 kV in differential mode and ±4 kV in common mode
Heat dissipation mode
Natural heat dissipation

Selection notes

  • Specifications are from the manufacturer's official product page.
  • Huawei lists more than one part number under this model name (98012502, 98012502-001). Confirm the part number supplied.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
