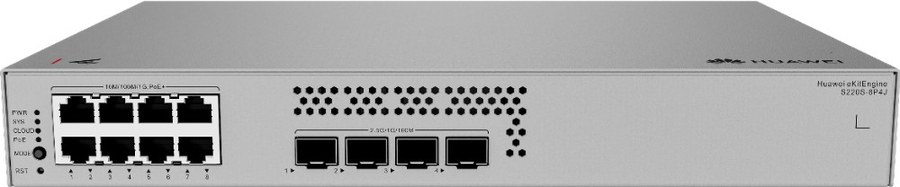

S220S-8P4J

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

8 x 10/100/1000BASE-T PoE+ ports, 4 x 2.5GE SFP ports | Packet forwarding rate: 27 Mpps | Switching capacity: 36 Gbit/s

Part number

98012471 / 98012471-001

Huawei category

Switch / S220S Series

Switching capacity

36 Gbit/s

Packet forwarding rate

27 Mpps

GE RJ45

8 (PoE+) (1G/100M/10M)

2.5G SFP

4 (2.5G/1G/100M)

PoE

Supported

Maximum PoE power consumption [W]

128

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

13.93

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320 mm x 210 mm (1.72 in. x 12.60 in. x 8.27 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320 mm x 217 mm (1.72 in. x 12.60 in. x 8.54 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

91.0 mm x 465.0 mm x 355.0 mm (3.58 in. x 18.31 in. x 13.98 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.53 kg (5.58 lb)

Weight with packaging [kg(lb)]

3.43 kg (7.56 lb)

Typical power consumption [W]

22.73

Maximum power consumption [W]

Without PoE: 23.23 W; Full PoE load: 161.56 W (PoE: 128 W)

Long-term operating temperature [°C(°F)]

–5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Heat dissipation mode

Natural heat dissipation

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012471, 98012471-001). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S220S-8P4J
• Huawei eKit official product page
• HUAWEI eKitEngine S220S Series Switches Datasheet
• S220S-8P4J Quick Start

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
