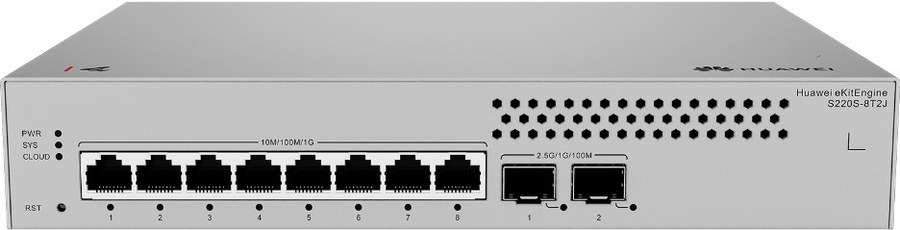

Huawei S220S-8T2J — 8-Port Gigabit L2 Smart Managed Switch. Manufacturer reference.
Huawei · Full reference: S220S-8T2J
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- 8-Port Gigabit L2 Smart Managed Switch
- Huawei description
- 8 x 10/100/1000BASE-T ports, 2 x 2.5GE SFP ports | Packet forwarding rate: 19 Mpps | Switching capacity: 26 Gbit/s
- Part number
- 98012453 / 98012453-001
- Huawei category
- Switch / S220S Series
- Switching capacity
- 26 Gbit/s
- Packet forwarding rate
- 19 Mpps
- GE RJ45
- 8 (1G/100M/10M)
- 2.5G SFP
- 2 (2.5G/1G/100M)
- Certification
- EMC certification; Safety certification; Manufacturing certification
- Chassis material
- Metal
- Static power consumption [W]
- 5.18
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 187 mm (1.72 in. x 9.84 in. x 7.36 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 113.0 mm x 310.0 mm x 240.0 mm (4.45 in. x 12.20 in. x 9.45 in.)
- Installation type
- Rack mounting,Desk mounting,Wall mounting
- Weight without packaging [kg(lb)]
- 1.34 (2.95)
- Weight with packaging [kg(lb)]
- 2.07 kg (4.56 lb)
- Typical power consumption [W]
- 10.31
- Maximum power consumption [W]
- 10.94
- Long-term operating temperature [°C(°F)]
- –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
- Power supply surge protection [kV]
- Differential mode: ±6 kV; common mode: ±6 kV
- Heat dissipation mode
- Natural heat dissipation
Selection notes
- Specifications are from the manufacturer's official product page.
- Huawei lists more than one part number under this model name (98012453, 98012453-001). Confirm the part number supplied.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
