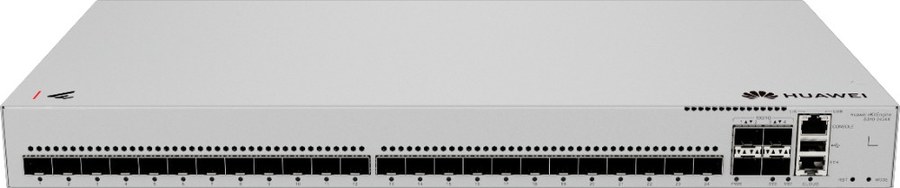

S310-24J4X

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

24-Port 2.5G L3 Fiber Managed Switch

Huawei description

S310-24J4X (24*2.5GE SFP ports, 4*10GE SFP+ ports, built-in AC power)

Part number

98013245

Huawei category

Switch / S310 Series

Integrated fixed device

Y

First supported version

V600R025C10

Remarks

A maximum of 12 copper modules can be installed on 1000BASE-X optical ports.

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

28.3

Number of card slots

0

2.5G SFP

24 (2.5G/1G/100M)

10G SFP+

4 (10G/2.5G/1G)

Number of fans modules

2

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).; Devices cannot start when the temperature is lower than 0°C (32°F).

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.40 in. x 8.98 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U]

1

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.72 kg (6 lb)

Weight with packaging [kg(lb)]

3.32 kg (7.32 lb)

Typical power consumption [W]

48.4

Typical heat dissipation [BTU/hour]

165.2

Maximum power consumption [W]

76

Maximum heat dissipation [BTU/hour]

259.3

MTBF [years]

51.36

MTTR [hours]

2

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

52.8

Noise at high temperature (acoustic power) [dB(A)]

59.8

Noise at normal temperature (acoustic pressure) [dB(A)]

39.35

Number of power slots

0

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz; High-voltage DC input: 240 V DC

Input voltage range [V]

AC input: 90 V AC to 264 V AC; 47 Hz to 63 Hz; High-voltage DC input: 88 V DC to 300 V DC

Maximum input current [A]

2 A

CPU

1.1 GHz, 2 cores

Memory

2 GB

Flash memory

Physical space: 1 GB

Console port

RJ45

Eth Management port

RJ45

USB

Supported

Dying gasp

Supported

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

Power consumption at 100% traffic [W]

50.8

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
