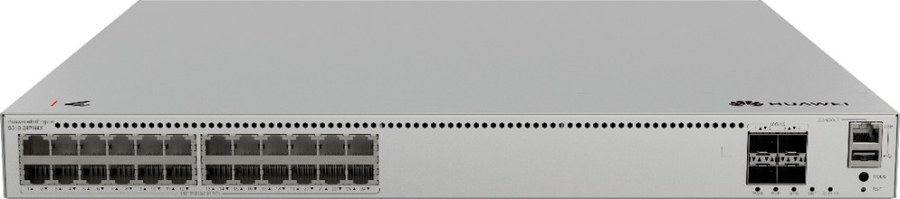

Huawei S310-24PN4X — Ethernet Switch. Manufacturer reference.
Huawei · Full reference: S310-24PN4X
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Ethernet Switch
- Huawei description
- 24 x 10/100/1000/2.5GBASE-T ports(400W PoE+), 4*10GE SFP+ ports | Built-in AC power | Packet forwarding rate: 144 Mpps | Switching capacity: 200 Gbit/s
- Part number
- 98012534
- Huawei category
- Switch / S310 Series
- Switching capacity
- 200 Gbit/s
- Packet forwarding rate
- 144 Mpps
- 2.5GE RJ45
- 24 (PoE+) (2.5G/1G/100M/10M)
- 10G SFP+
- 4 (10G/1G)
- PoE
- Supported
- Maximum PoE power consumption [W]
- 400
- iStack
- Up to 4 switches of the same series in a stack
- Certification
- EMC certification; Safety certification; Manufacturing certification
- Chassis material
- Metal
- Static power consumption [W]
- 37.1
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
- Installation type
- Rack mounting,Desk mounting
- Weight without packaging [kg(lb)]
- 4.71 kg (10.38 lb)
- Weight with packaging [kg(lb)]
- 6.89 kg (15.19 lb)
- Typical power consumption [W]
- 54.8
- Maximum power consumption [W]
- Without PoE: 77.70 W; Full PoE load: 517.30 W (PoE: 400 W)
- Number of fans modules
- 2
- Long-term operating temperature [°C(°F)]
- –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC
- Power supply surge protection [kV]
- Differential mode: ±6 kV; common mode: ±6 kV
- Types of fans
- Built-in
- Heat dissipation mode
- Air cooling for heat dissipation, intelligent fan speed adjustment
- Airflow direction
- Air intake from left and front, air exhaustion from right
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
