S310-24T8J4X

Huawei S310-24T8J4X — 24-Port Non PoE+ L3 Managed Switch (with 2.5G Uplink). Manufacturer reference.

Huawei · Full reference: S310-24T8J4X

Ask about this model

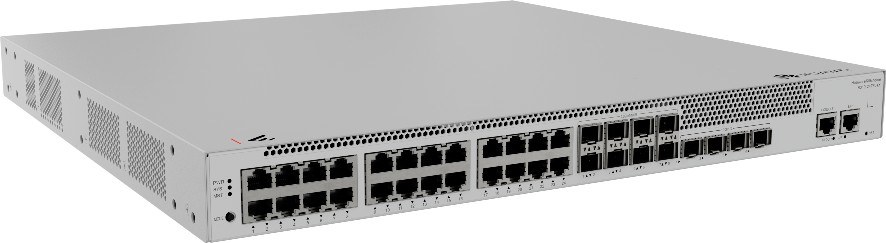

Huawei S310-24T8J4X 24-Port Non PoE+ L3 Managed Switch (with 2.5G Uplink)
Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
24-Port Non PoE+ L3 Managed Switch (with 2.5G Uplink)
Huawei description
24 x 10/100/1000BASE-T ports, 8 x 2.5GE SFP ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports | Packet forwarding rate: 125 Mpps | Switching capacity: 168 Gbit/s
Part number
98012570
Huawei category
Switch / S310 Series
Switching capacity
168 Gbit/s
Packet forwarding rate
125 Mpps
GE RJ45
24 (1G/100M/10M)
2.5G SFP
8 (2.5G/1G/100M)
10G SFP+
4 (10G/1G)
iStack
Up to 4 switches of the same series in a stack
Certification
EMC certification; Safety certification; Manufacturing certification
Chassis material
Metal
Static power consumption [W]
22.26
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Installation type
Rack mounting,Desk mounting
Weight without packaging [kg(lb)]
4.13 kg (9.1 lb)
Weight with packaging [kg(lb)]
6.57 kg (14.48 lb)
Typical power consumption [W]
39.18
Maximum power consumption [W]
49.52
Number of fans modules
2
Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Power supply mode
AC built-in
Input voltage range [V]
AC input: 90 V AC to 264 V AC; 47–63 Hz; High-voltage DC input: 88 V DC to 300 V DC
Power supply surge protection [kV]
Differential mode: ±6 kV; common mode: ±6 kV
Types of fans
Built-in
Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction
Air intake from left and front, air exhaustion from right

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
