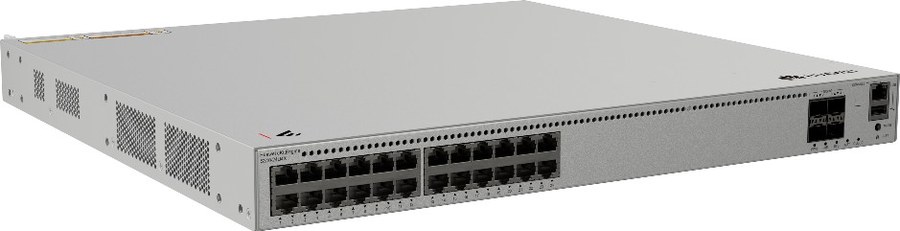

S310-24U4X

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

24 x 10/100/1000BASE-T PoE++ ports, 4 x 10GE SFP+ ports | AC power supply | PoE 2268 W | Packet forwarding rate: 95 Mpps | Switching capacity: 128 Gbit/s

Part number

98012947

Huawei category

Switch / S310 Series

Switching capacity

128 Gbit/s

Packet forwarding rate

95 Mpps

GE RJ45

24 (PoE++) (1G/100M/10M)

10G SFP+

4 (10G/1G)

PoE

Supported

Maximum PoE power consumption [W]

Single-power module scenario: Single 600 W AC power module: 513 W (220 V AC); 228 W (110 V AC); Single 1000 W AC power module: 846 W (220 V AC); 756 W (110 V AC); Single 1000 W DC power module: 846 W (56 V DC); Dual-power module scenario: 600 W AC power module + 600 W AC power module: 1083 W (220 V AC); 513 W (110 V AC); 600 W AC power module + 1000 W AC power module: 1386 W (220 V AC); 600 W AC power module + 1000 W DC power module: 1386 W (220 V AC/56 V DC); 1000 W AC power module + 1000 W AC power module: 1746 W (220 V AC); 1566 W (110 V AC); 1000 W DC power module + 1000 W DC power module: 1746 W (56 V DC); 1000 W AC power module + 1000 W DC power module: 1746 W (220 V AC/56 V DC); 1566 W (110 V AC/56 V DC); Three-power module scenario: 600 W AC power module + 600 W AC power module + 600 W AC power module: 1653 W (220 V AC); 798 W (110 V AC); 600 W AC power module + 600 W AC power module + 1000 W AC power module: 1926 W (220 V AC); 600 W AC power module + 1000 W AC power module + 1000 W AC power module: 2268 W (220 V AC); 600 W AC power module + 600 W AC power module + 1000 W DC power module: 1926 W (220 V AC/220 V AC/56 V DC); 600 W AC power module + 1000 W AC power module + 1000 W DC power module: 2268 W (220 V AC/220 V AC/56 V DC); 600 W AC power module + 1000 W DC power module + 1000 W DC power module: 2268 W (220 V AC/56 V DC/56 V DC); 1000 W AC power module + 1000 W AC power module + 1000 W AC power module: 2268 W (220 V AC); 2268 W (110 V AC); 1000 W AC power module + 1000 W AC power module + 1000 W DC power module: 2268 W (220 V AC/220 V AC/56 V DC); 2268 W (110 V AC/110 V AC/56 V DC); 1000 W AC power module + 1000 W DC power module + 1000 W DC power module: 2268 W (220 V AC/56 V DC/56 V DC); 2268 W (110 V AC/56 V DC/56 V DC); 1000 W DC power module + 1000 W DC power module + 1000 W DC power module: 2268 W (56 V DC)

iStack

Up to 4 switches of the same series in a stack

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

28.8

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type

Rack mounting,Desk mounting

Weight without packaging [kg(lb)]

5.92 kg (13.05 lb)

Weight with packaging [kg(lb)]

7.99 kg (17.61 lb)

Typical power consumption [W]

36.98

Maximum power consumption [W]

Without PoE: 51.60 W (with two 600 W AC power modules); 54.70 W (with two 1000 W AC power modules); 65.30 W (with two 1000 W DC power modules); Full PoE load: 2428.11 W (PoE: 2268 W, with three 1000 W AC power modules)

Number of fans modules

2

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

Pluggable power supply

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45–65 Hz; High-voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC

Power supply surge protection [kV]

Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode; Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
