S310-48J4X

Huawei S310-48J4X — 48-Port 2.5G L3 Fiber Managed Switch. Manufacturer reference.

Huawei · Full reference: S310-48J4X

Ask about this model
Huawei S310-48J4X 48-Port 2.5G L3 Fiber Managed Switch

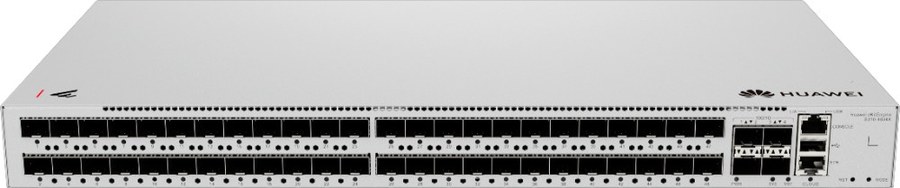

Image: Huawei official product image

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type
48-Port 2.5G L3 Fiber Managed Switch
Huawei description
S310-48J4X (48*2.5GE SFP ports, 4*10GE SFP+ ports, built-in AC power)
Part number
98013246
Huawei category
Switch / S310 Series
Static power consumption [W]
51.5
Number of card slots
0
10G SFP+
4 (10G/2.5G/1G)
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 228.0 mm (1.72 in. x 17.40 in. x 8.98 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation type
Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]
3.34 (7.36)
Weight with packaging [kg(lb)]
3.93 kg (8.66 lb)
Typical power consumption [W]
86.4
Typical heat dissipation [BTU/hour]
294.8
Maximum power consumption [W]
130.5
Maximum heat dissipation [BTU/hour]
445.3
Number of power slots
0
Number of fans modules
2
Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Rated input voltage [V]
AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]
AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Types of fans
Built-in
2.5G SFP
48 (2.5G/1G/100M)
Maximum input current [A]
3 A
Power consumption at 100% traffic [W]
91.1

Selection notes

  • Specifications are from the manufacturer's official product page.
  • ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
