IS DistributionsEnquireS310S-24P4J

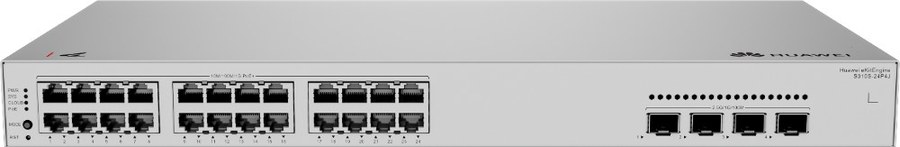

Huawei S310S-24P4J — Ethernet Switch. Manufacturer reference.
Huawei · Full reference: S310S-24P4J
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Ethernet Switch
- Huawei description
- 24 x 10/100/1000BASE-T PoE+ ports, 4 x 2.5GE SFP ports | Packet forwarding rate: 51 Mpps | Switching capacity: 68 Gbit/s
- Part number
- 98012523
- Huawei category
- Switch / S310S Series
- Switching capacity
- 68 Gbit/s
- Packet forwarding rate
- 51 Mpps
- GE RJ45
- 24 (PoE+) (1G/100M/10M)
- 2.5G SFP
- 2 (2.5G/1G/100M)
- PoE
- Supported
- Maximum PoE power consumption [W]
- 400
- Certification
- EMC certification; Safety certification; Manufacturing certification
- Chassis material
- Metal
- Static power consumption [W]
- 18.74
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
- Installation type
- Rack mounting,Desk mounting,Wall mounting
- Weight without packaging [kg(lb)]
- 2.8 kg (6.17 lb)
- Weight with packaging [kg(lb)]
- 3.71 kg (8.18 lb)
- Typical power consumption [W]
- 33.32
- Maximum power consumption [W]
- Without PoE: 38.58 W; Full PoE load: 482.55 W (PoE: 400 W)
- Number of fans modules
- 2
- Long-term operating temperature [°C(°F)]
- –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC
- Power supply surge protection [kV]
- Differential mode: ±6 kV; common mode: ±6 kV
- Types of fans
- Built-in
- Heat dissipation mode
- Air cooling for heat dissipation, intelligent fan speed adjustment
- Airflow direction
- Air intake from left and front, air exhaustion from right
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
- ISD datasheet (PDF): Huawei S310S-24P4J
- Huawei eKit official product page
- Huawei eKitEngine S310S Series Switches Datasheet
- S310S-24P4J Quick Start
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
