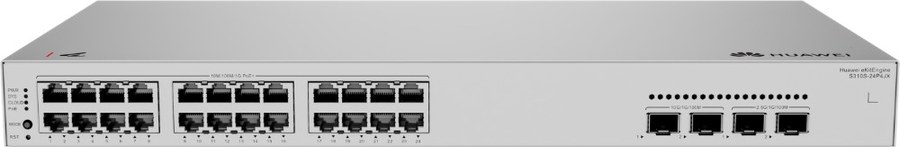

S310S-24P4JX

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

Ethernet Switch

Huawei description

24 x 10/100/1000BASE-T PoE+ ports, 2 x 10GE SFP+ ports, 2 x 2.5GE SFP ports | PoE | Packet forwarding rate: 73 Mpps | Switching capacity: 98 Gbit/s

Part number

98012525 / 98012525-001 / 98013114

Huawei category

Switch / S310S Series

Switching capacity

98 Gbit/s

Packet forwarding rate

73 Mpps

GE RJ45

24 (PoE+) (1G/100M/10M)

2.5G SFP

2 (2.5G/1G/100M)

10G SFP+

2 (10G/1G/100M)

PoE

Supported

Maximum PoE power consumption [W]

400

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

18.74

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.40 in. x 8.66 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.40 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Installation type

Rack mounting,Desk mounting,Wall mounting

Weight without packaging [kg(lb)]

2.8 kg (6.17 lb)

Weight with packaging [kg(lb)]

3.71 kg (8.18 lb)

Typical power consumption [W]

33.32

Maximum power consumption [W]

Without PoE: 38.58 W; Full PoE load: 482.55 W (PoE: 400 W)

Number of fans modules

2

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

AC built-in

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz; High-voltage DC input: 190 V DC to 290 V DC

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012525, 98012525-001, 98013114). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): Huawei S310S-24P4JX
• Huawei eKit official product page
• Huawei eKitEngine S310S Series Switches Datasheet
• S310S-24P4JX Quick Start

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
