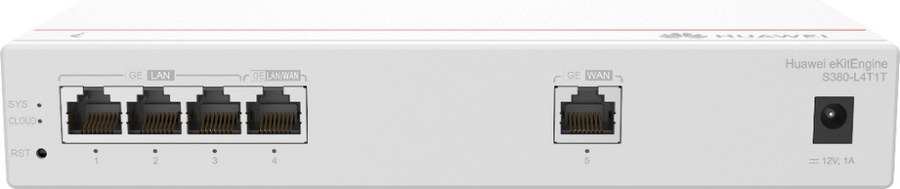

Huawei S380-L4T1T — Multi-Service Gateway. Manufacturer reference.
Huawei · Full reference: S380-L4T1T
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Multi-Service Gateway
- Huawei description
- Multi-Service Gateway | Number of managed Aps: 32 | Maximum user: 200 | Switching Capacity: 8Gbps | Packet forwarding rate: Upload:300 Kpps, download:420 Kpps | Egress bandwidth: 1Gbps | 1 x 10/100/1000BASE-T port(WAN)+4 x 10/100/1000BASE-T ports(LAN)
- Part number
- 98012177
- Huawei category
- Router / S380 Series
- Switching Capacity
- 8Gbps
- Maximum user
- 200
- Packet forwarding rate
- pload:300 Kpps, download:420 Kpps
- Egress bandwidth
- 1Gbps
- Managed APs
- 32
- GE RJ45
- 5 (1G/100M/10M)
- WAN ports
- 1 x GE WAN
- LAN ports
- 4 x GE LAN
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
- Installation type
- Desk mounting,Wall mounting
- Chassis material
- Metal
- Weight without packaging [kg(lb)]
- 0.8 (1.76)
- Weight with packaging [kg(lb)]
- 1.0 (2.2)
- Typical power consumption [W]
- 5.99
- Maximum power consumption [W]
- 6.11
- Long-term operating temperature [°C(°F)]
- 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- Power adapter
- Input voltage range [V]
- AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz; Power adapter output: 12 V DC
- Power supply surge protection [kV]
- Power adapter: ±6 kV in differential mode and ±6 kV in common mode
- Heat dissipation mode
- Natural heat dissipation
- Certification
- EMC certification; Safety certification; Manufacturing certification
