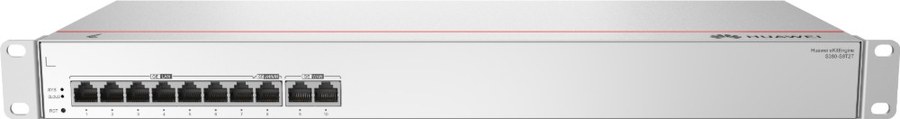

Huawei S380-S8T2T — Multi-Service Gateway. Manufacturer reference.
Huawei · Full reference: S380-S8T2T
Ask about this model
Manufacturer reference
Manufacturer details describe the cited version. Confirm the exact unit and intended system.
- Product type
- Multi-Service Gateway
- Huawei description
- Multi-Service Gateway | Number of managed Aps: 64 | Maximum user: 300 | Switching Capacity: 16Gbps | Packet forwarding rate: Upload:500 Kpps, download:420 Kpps | Egress bandwidth: 2Gbps | 2 x 10/100/1000BASE-T ports(WAN) + 8 x 10/100/1000BASE-T ports(LAN)
- Part number
- 98012179
- Huawei category
- Router / S380 Series
- Switching Capacity
- 16Gbps
- Maximum user
- 300
- Packet forwarding rate
- Upload:500 Kpps, download:420 Kpps
- Egress bandwidth
- 2Gbps
- Managed APs
- 64
- GE RJ45
- 10 (1G/100M/10M)
- WAN ports
- 2 x GE WAN
- LAN ports
- 8 x GE LAN
- Dimensions without packaging (H x W x D) [mm(in.)]
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 165.2 mm (1.72 in. x 17.4 in. x 6.5 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]
- 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
- Installation type
- Rack mounting,Desk mounting,Wall mounting
- Chassis material
- Metal
- Weight without packaging [kg(lb)]
- 1.6 kg (3.53 lb)
- Weight with packaging [kg(lb)]
- 2.1 kg (4.63 lb)
- Typical power consumption [W]
- 10.4
- Maximum power consumption [W]
- 10.55
- Long-term operating temperature [°C(°F)]
- 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
- Long-term operating relative humidity [RH]
- 5% RH to 95% RH, non-condensing
- Power supply mode
- AC built-in
- Input voltage range [V]
- AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
- Power supply surge protection [kV]
- Power adapter: ±6 kV in differential mode and ±6 kV in common mode
- Heat dissipation mode
- Natural heat dissipation
- Certification
- EMC certification; Safety certification; Manufacturing certification
Selection notes
- Specifications are from the manufacturer's official product page.
- ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
Official documents
Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
