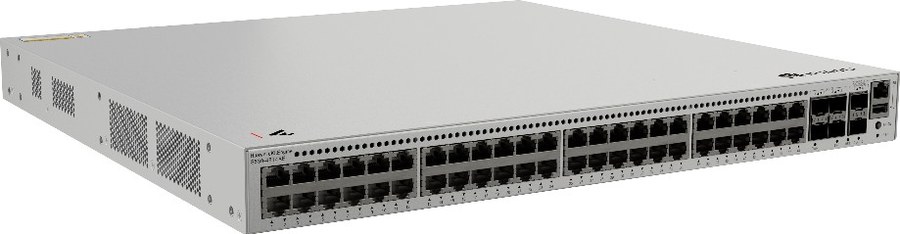

S530-48T4XE

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

48-Port Gigabit L3 Managed Switch

Huawei description

48 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, 2 x 10GE stack ports | Packet forwarding rate: 160 Mpps | Switching capacity: 216 Gbit/s

Part number

98012951 / 98013070

Huawei category

Switch / S530 Series

Switching capacity

216 Gbit/s

Packet forwarding rate

160 Mpps

GE RJ45

48 (1G/100M/10M)

10G SFP+

4 (10G/1G)

iStack

Up to 9 switches of the same series in a stack

Number of power slots

2

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

25.31

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)

Installation type

Rack mounting,Desk mounting

Weight without packaging [kg(lb)]

5.43 kg (11.97 lb)

Weight with packaging [kg(lb)]

7.19 kg (15.85 lb)

Typical power consumption [W]

39.10

Maximum power consumption [W]

55.12 W (with two 80 W AC power modules); 64.51 W (with two 180 W AC power modules); 93.26 W (with two 1200 W DC power modules)

Number of fans modules

2

Redundant power supply

1+1; Power modules without fans and power modules with fans cannot be installed in the same chassis.

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

Pluggable power supply

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45–65 Hz; High-voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC

Power supply surge protection [kV]

Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode; Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Selection notes

• Specifications are from the manufacturer's official product page.
• Huawei lists more than one part number under this model name (98012951, 98013070). Confirm the part number supplied.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
