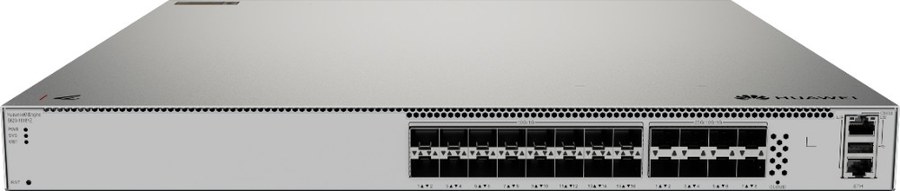

S620-16X8YZ

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

16-Port 10GE L3 Fibre Managed Switch

Huawei description

16 x 10GE SFP+ ports, 8 x 25GE SFP28 ports | Packet forwarding rate: 833 Mpps | Switching capacity: 1120 Gbit/s

Part number

98012580

Huawei category

Switch / S600 Series

Switching capacity

1120 Gbit/s

Packet forwarding rate

833 Mpps

10G SFP+

16 (10G/2.5G/1G)

25G SFP28

8 (25G/10G/2.5G/1G)

Number of card slots

1

Number of power slots

2

Certification

EMC certification; Safety certification; Manufacturing certification

Chassis material

Metal

Static power consumption [W]

50

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.); Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)

Installation type

Rack mounting,Desk mounting

Weight without packaging [kg(lb)]

6.0 (13.23)

Weight with packaging [kg(lb)]

8.49

Typical power consumption [W]

30% traffic under the ATIS standard and dual power modules: 79 W (with two 180 W AC power modules); 73 W (with two 240 W DC power modules)

Maximum power consumption [W]

100% traffic under the ATIS standard and dual power modules: 85 W (with two 180 W AC power modules); 78 W (with two 240 W DC power modules)

Number of fans modules

2

Redundant power supply

1+1; Pluggable AC and DC power modules can be used together on the same device.; Note: Power modules with fans and power modules without fans cannot be installed on the same device.

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Power supply mode

Pluggable power supply

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz; High-voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC

Power supply surge protection [kV]

Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode; Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Types of fans

Pluggable

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from front and right and air exhaust from rear

iStack

Up to 9 switches of the same series in a stack

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.
