MA80XE

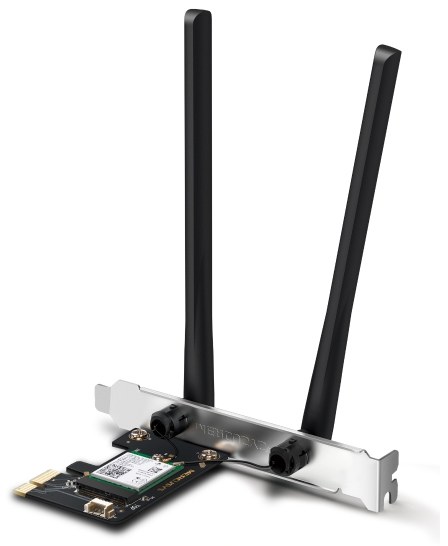

Mercusys MA80XE — AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter. Manufacturer reference.

Mercusys · Full reference: MA80XE

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wireless Standards: IEEE 802.11 a/ac/ax 5 GHz, IEEE 802.11 b/g/n/ax 2.4 GHz
WiFi Speeds: 2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
Bluetooth Version: Bluetooth 5.2
Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
Dimensions: 8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)
Antenna Type: 2× Fixed High-Performance Omni-Directional Antennas
Reception Sensitivity (5 GHz): 11ax HE80 MCS0: -90 dBm; 11ax HE80 MCS11: -59 dBm; 11a 54Mbps: -77 dBm; 11ac VHT80 MCS0: -92dBm; 11ac VHT80 MCS9: -64dBm
Reception Sensitivity (2.4 GHz): 11ax HE40 MCS0: -91 dBm; 11ax HE40 MCS11: -60 dBm; 11g 54Mbps: -76 dBm; 11n HT40 MCS7: -72dBm
Package Contents: AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE), Bluetooth Header Cable, Quick Installation Guide, Resource CD
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
System Requirements: Supported operating systems include Windows 10, 11(64-bit)

Specifications are from the manufacturer's official product page.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
