MINI-GBIC-LX-SM1310

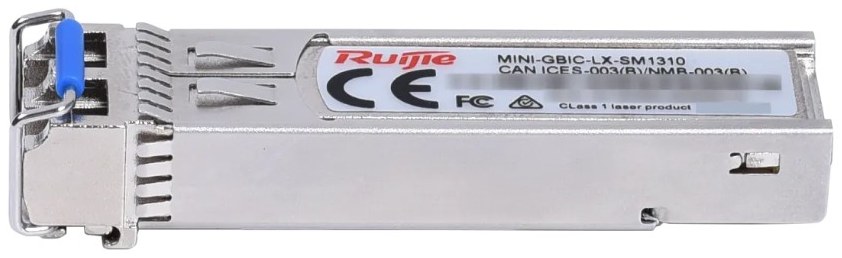

Ruijie MINI-GBIC-LX-SM1310 — 1000BASE-LX 10km Duplex Single Mode SFP Module. Manufacturer reference.

Ruijie · Full reference: MINI-GBIC-LX-SM1310

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: 1000BASE-LX 10km Duplex Single Mode SFP Module
Ruijie description: 1G LX module, SFP form factor, LC, 10 km (32,808.40 ft.) over SMF
Standards: IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, RoHS
Data rate: 1.25 Gbps
Form factor: SFP
Connector type: Duplex LC
Cable type: SMF
Fiber end face finish type: Ultra Physical Contact (UPC)
Transmitter type: DFB
Receiver type: PIN
Reach: 10 km (32,808.40 ft.)
Bit error ratio (BER): 1.00E-12
Data diagnosis-capable (DDM/DOM): Yes
Power consumption: ≤ 1.5 W
Wavelength (nm): 1310
Max. transmit power (AVG): –3 dBm
Min. transmit power (AVG): –11 dBm
Min. extinction ratio: ≥ 9 dB
Receive sensitivity (OMA): < –19 dBm
Overload optical power (AVG): –3 dBm
Operating temperature: 0°C to 70°C (32°F to 158°F)
Operating humidity: 10% RH to 90% RH
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Storage humidity: 10% RH to 90% RH
Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight: 35 g (0.08 lbs.)

Specifications are from the manufacturer's official product page.
The manufacturer's page title for this model reads 1000BASE-SX; its text (IEEE 1000BASE-LX optical specifications) and its order information (1G LX module, 10 km over SMF) describe a 1000BASE-LX module, which is what this page shows.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
