RG-ANT13-360

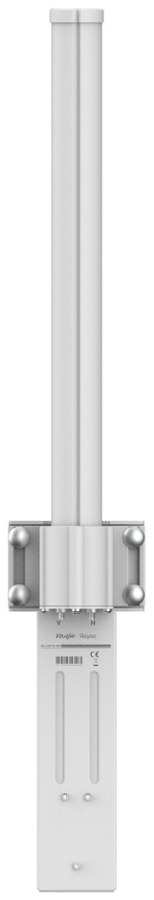

Ruijie RG-ANT13-360 — 360° Omnidirectional Antenna for RG-AirMetro Series Wireless Bridges. Manufacturer reference.

Ruijie · Full reference: RG-ANT13-360

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: 360° Omnidirectional Antenna for RG-AirMetro Series Wireless Bridges
Ruijie description: 360° Omnidirectional Antenna of RG-AirMetro Series Wireless Bridges
Antenna horizontal orientation: 360°
Antenna vertical orientation: 7°
Product dimensions (W x D x H): 120 mm x 82 mm x 769 mm (4.72 in. x 3.23 in. x 30.28 in.) (excluding mounting bracket)
Operating temperature: –40°C to +80°C (–40°F to +176°F)
Operating humidity: 5% RH to 95% RH (non-condensing)
MTBF: 400,000 hours (about 45 years)
IP rating: IP55
Antenna gain (Ruijie product list): 13 dBi
Application (Ruijie product list): Used with the bridge base station RG-AirMetro550G-B; recommended for PTMP scenarios with a distance of less than 2 km

Specifications are from the manufacturer's official product page.
Rows marked (Ruijie product list) were carried over from the earlier Ruijie product list entry for this model.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
