RG-EST100-E

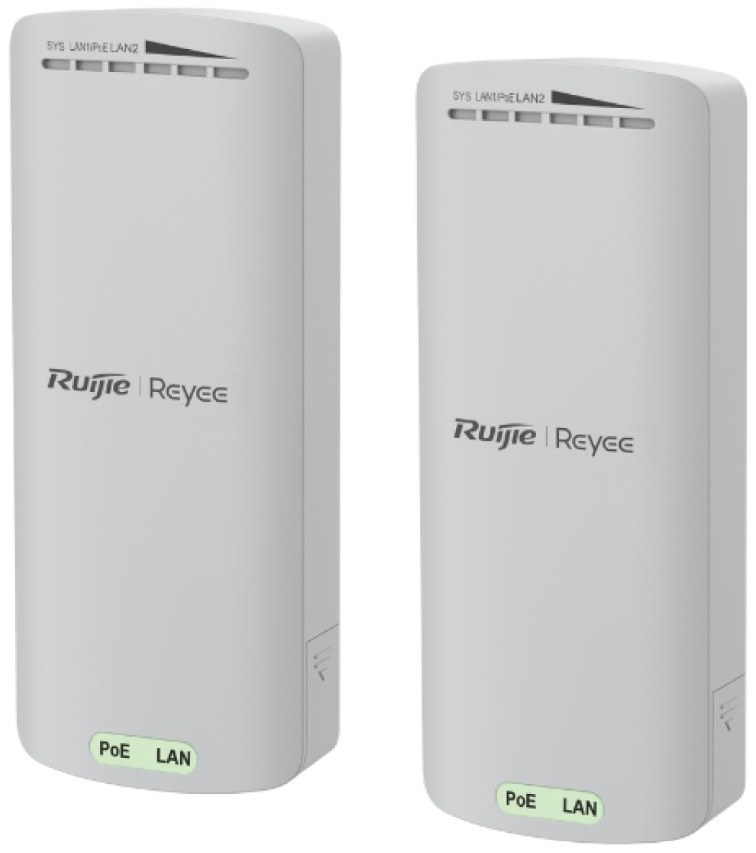

Ruijie RG-EST100-E — 2.4GHz Dual-stream 500m PTP Wireless Bridge. Manufacturer reference.

Ruijie · Full reference: RG-EST100-E

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: 2.4GHz Dual-stream 500m PTP Wireless Bridge
Ruijie description: 2.4GHz Dual-stream 500m Wireless Bridge
Radio design: Single-radio; 2 spatial streams; Radio 1: 2.4 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width: Auto/20/40 MHz
Antenna horizontal orientation: 70°
Antenna vertical orientation: 70°
Product dimensions (W x D x H): 68.7 mm x 42 mm x 165.5 mm (2.70 in. x 1.65 in. x 6.52 in.)
Number of PoE In ports: 1
Operating temperature: –30°C to +60°C (–22°F to +140°F)
Operating humidity: 5% RH to 95% RH (non-condensing)
MTBF: 400,000 hours (about 45 years)
IP rating: IP55
Bridge speed test: Yes
SON: Yes
AI heatmap: No
Restarting devices through Ruijie Reyee App: Yes
SNMPv1, v2c, and v3: No
Antenna (Ruijie product list): Built-in directional antenna, 8 dBi
Package (Ruijie product list): 2 devices paired in the package
Camera loading (Ruijie product list): Max 10 x 3MP cameras at 100 m; 5 x 3MP cameras at 500 m

Specifications are from the manufacturer's official product page.
Rows marked (Ruijie product list) were carried over from the earlier Ruijie product list entry for this model.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
