RG-RAP2200(E)

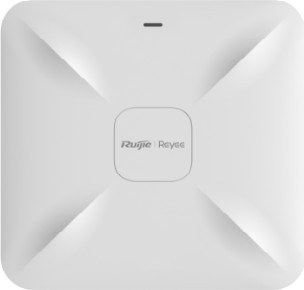

Ruijie RG-RAP2200(E) — AC1300 WiFi 5 Dual Band Ceiling Indoor AP. Manufacturer reference.

Ruijie · Full reference: RG-RAP2200(E)

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: AC1300 WiFi 5 Dual Band Ceiling Indoor AP
Ruijie description: Reyee Wi-Fi 5 1267Mbps Ceiling Access Point
Radio design: Dual-radio; 4 spatial streams; 2.4 GHz: 2 x 2, MIMO; 5 GHz: 2 x 2, MIMO
Maximum wireless data rate: 1266 Mbps
6 GHz wireless data rate: No
5 GHz wireless data rate: 866 Mbps
2.4 GHz wireless data rate: 400 Mbps
Antenna: 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 2 built-in omnidirectional antennas
Product dimensions (W x D x H): 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color: White
Weight: ≤ 0.45 kg (0.99 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports: 2
Power supply: DC power adapter; PoE/PoE+; Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply: Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.)
Maximum power consumption: 12.95 W
Operating temperature: 0°C to 40°C (32°F to 104°F)
Mounting options: Ceiling/Wall
IP rating: No
Maximum number of associated wireless clients: 64 (2.4 GHz); 110 (5 GHz); 110 (2.4 GHz and 5 GHz enabled)
Co-channel roaming: No
Maximum number of devices that can be managed: 300
IPv6: Yes

Specifications are from the manufacturer's official product page.
