RG-RAP2266

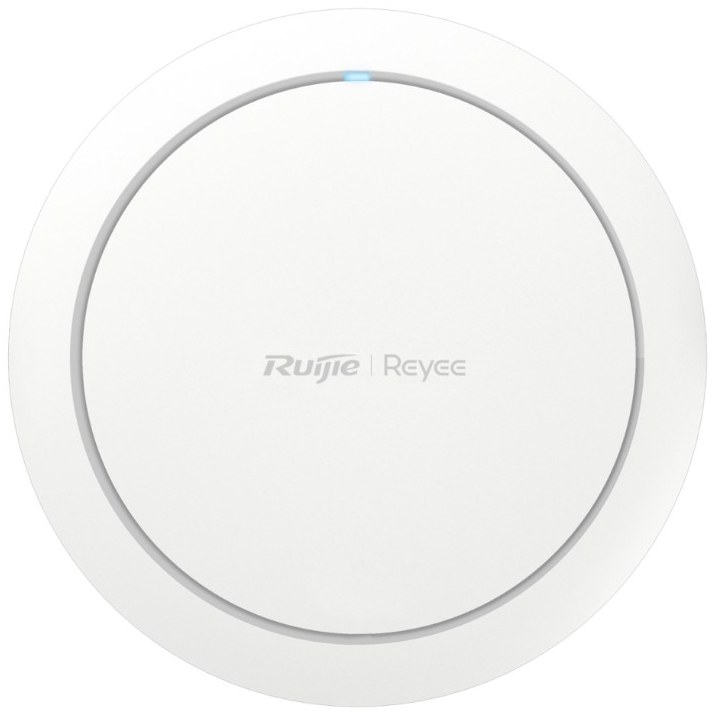

Ruijie RG-RAP2266 — AX3000 WiFi 6 Dual-Band Gigabit Ceiling Indoor AP. Manufacturer reference.

Ruijie · Full reference: RG-RAP2266

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: AX3000 WiFi 6 Dual-Band Gigabit Ceiling Indoor AP
Ruijie description: Reyee Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point
Radio design: Dual-radio; 4 spatial streams; 2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate: 2974 Mbps
6 GHz wireless data rate: No
5 GHz wireless data rate: 2401 Mbps
2.4 GHz wireless data rate: 573 Mbps
Antenna: 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 3 built-in omnidirectional antennas
Product dimensions (diameter x height): Ø220 mm x 52.6 mm (Ø8.66 in. x 2.07 in.) (excluding the mounting bracket)
Color: White
Weight: ≤ 0.5 kg (1.10 lbs.) (without packaging materials)
Number of 10/100/1000BASE-T ports: 1
Power supply: DC power adapter; PoE/PoE+; Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply: Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.)
Maximum power consumption: 18 W
Operating temperature: 0°C to 40°C (32°F to 104°F)
Mounting options: Ceiling/Wall
IP rating: IP41
Maximum number of associated wireless clients: 64 (2.4 GHz); 512 (5 GHz); 512 (2.4 GHz and 5 GHz enabled)
Co-channel roaming: Yes
Maximum number of devices that can be managed: 300
IPv6: Yes

Specifications are from the manufacturer's official product page.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
