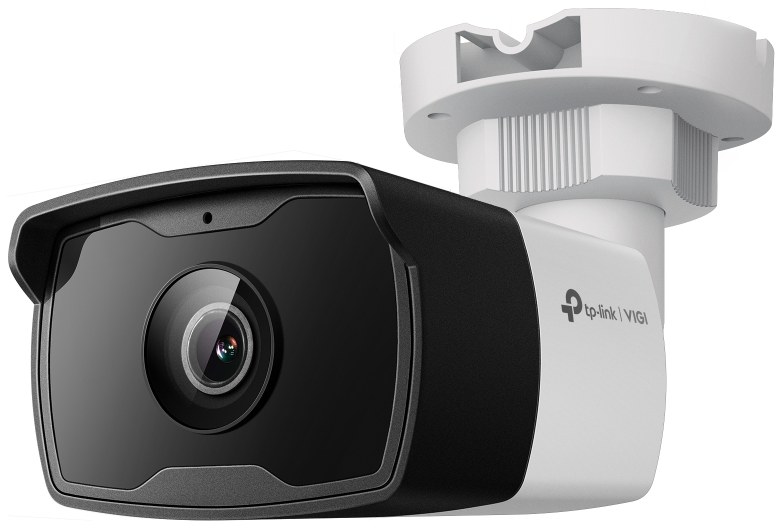

VIGI C320I

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

2MP Outdoor IR Bullet Network Camera

Resolution

2MP

Night Vision

IR Night Vision

Human & Vehicle Classification

Yes

Built-In Microphone

Yes

Protection

IP67

Video Compression

H.265+

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

Color: 0.01 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Lens Type

Fixed Focal Lens

Focal Length

2.8 mm/4 mm

Aperture

2.8 mm: F2.2, 4 mm: F2.0

FOV

2.8 mm: Horizontal FOV: 88.2°, Vertical FOV: 48.6°, Diagonal FOV: 106.5°; 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°

Lens Mount

M12

DORI Distance

2.8 mm: Detect: 45 m (149 ft), Observe: 19 m (62 ft), Recognize: 9 m (30 ft), Identify: 5 m (15 ft); 4 mm: Detect: 60 m (198 ft), Observe: 25 m (83 ft), Recognize: 12 m (40 ft), Identify: 6 m (20 ft)

Angle Adjustment Range (Manual)

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

IR LED

Quantity: 2, Range: 50m, Wavelength: 850nm

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Max. Resolution

1920 × 1080

Main Stream

Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1920x1080, 1280x960, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576, 640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression (Main / Sub-Stream)

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio Input

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

Protocol

TCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP, DNS, RTSP; NTP; UPnP; SSL/TLS; FTP/SFTP; RTP; IPv4; ARP

ONVIF

Yes

API

Open Network Video Interface (Profile S)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI

Web Browser

Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Smart Event

Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection

Basic Event

Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login)

Alarm Linkage

Message Push

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Operating Temperature

-30 to 60 °C

Storage Temperature

-40 to 60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Content

VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories

Material

Plastic

Net Weight

0.28 Kg

Gross Weight

0.43 Kg

Power Supply

PoE: 802.3af/at, class 0, Max. 5.5 W

Product Dimensions (L x W x H)

78.50 × 188.03 × 71.55 mm (3.09 × 7.40 × 2.82 in)

Certifications

CE, NTRA, VCCI, BSMI

Selection notes

• Specifications are from the manufacturer's official product page.
• Lens options listed by the supplier: 2.8mm lens; 4mm lens. Confirm the lens required.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): TP-Link VIGI C320I
• TP-Link official source

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
