POE260R

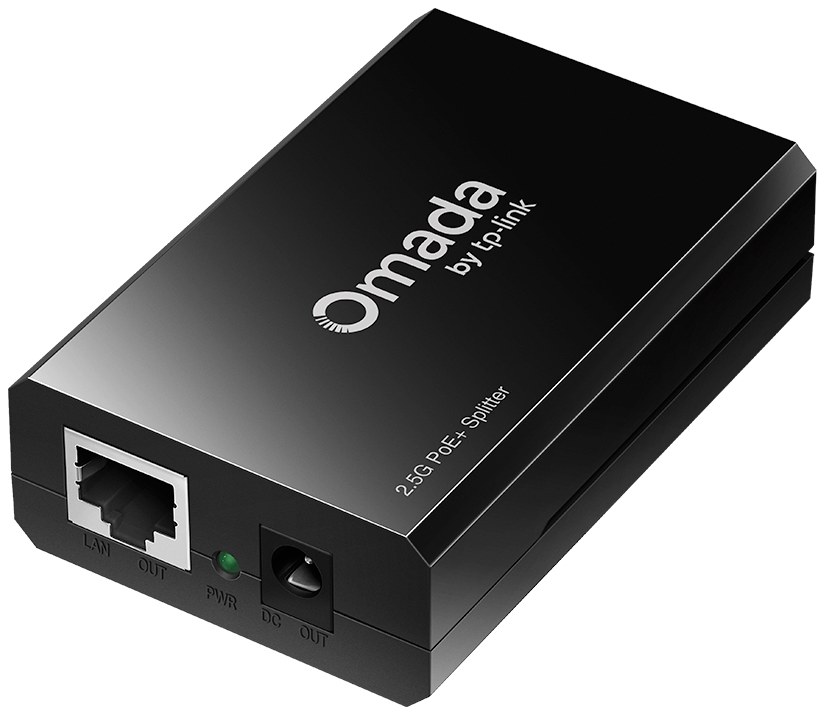

TP-Link POE260R — Omada 2.5G PoE+ Splitter. Manufacturer reference.

TP-Link · Full reference: POE260R

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: Omada 2.5G PoE+ Splitter
Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, IEEE 802.3at
LED: PWR
Ports: 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port, 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port, 12V / 9V / 5V DC OUT Power Output Port
Power: Adjustable output 5VDC/2A,9VDC/2A or 12VDC/2A
Dimensions: 3.2×2.1×0.9 in. (80.8×54×24 mm)
Certifications: CE, FCC, ROHS
Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
Operating Humidity: 10% to 90% RH non-condensing

Specifications are from the manufacturer's official datasheet.
