SL2428P

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type

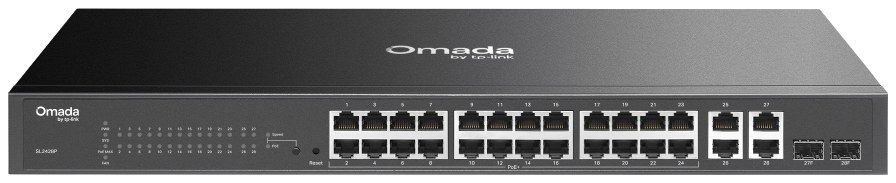

Omada 24-Port 10/100Mbps + 4-Port Gigabit Switch with 24-Port PoE+

PoE+ Ports

24× 10/100 Mbps

Gigabit RJ45 Ports

2

Gigabit Combo RJ45/SFP Uplink Ports

2

PoE Power Budget

250 W

Centralized Cloud Management

Supported

Static Routing

Supported

Fan Quantity

2

Physical Security Lock

Yes

Power Supply

100-240 VAC, 50/60 Hz

PoE Standard

802.3at/af compliant

Dimensions (W x D x H)

17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

291.6 W (110 V / 60 Hz) (with 250 W PD connected)

Max. Heat Dissipation

995.09 BTU/hr (110V/60Hz) (with 250 W PD connected)

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

Switching Capacity

12.8 Gbps

Packet Forwarding Rate

9.52 Mpps

MAC Address Table

8K

Quality of Service

802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port/Flow based Rating Limit; Smoother Performance; Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

16 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring; Device Link Detect Protocol (DLDP); 802.1ab LLDP/ LLDP-MED

L2 Multicast

511 IPv4, IPv6 shared multicast groups; IGMP Snooping; Multicast VLAN Registration (MVR); Multicast Filtering; Limited IP Multicast (256 profiles and 16 entries per profile)

VLAN

VLAN Group: Max. 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN: 12 Entries, Protocol VLAN, GVRP, Voice VLAN

Access Control List

Support up to 230 entries; Time-based ACL; MAC ACL; IP ACL; IPv6 ACL; Combined ACL; Rule Operation: Permit/Deny; Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark; ACL Rules Binding: Port Binding, VLAN Binding

IPv6

IPv6 Static Routing and ACL; IPv6 Dual IPv4/IPv6; IPv6 Interface; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs

MIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9)

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

Web-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log

Certification

CE, FCC

Package Content

SL2428P, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Operating Temperature

0°C~50°C (32°F~122°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Selection notes

• Specifications are from the manufacturer's official product page.
• ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Official documents

• ISD datasheet (PDF): TP-Link SL2428P
• TP-Link official source
• TP-Link official product page

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
