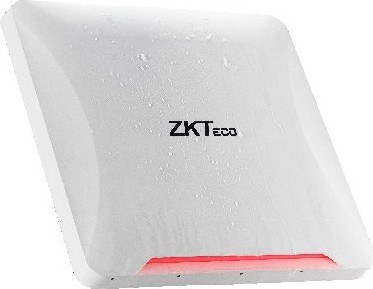

UHF10F Pro

ZKTeco UHF10F Pro — UHF Reader (with SIRIM). Manufacturer reference.

ZKTeco · Full reference: UHF10F Pro

Manufacturer reference

Manufacturer details describe the cited version. Confirm the exact unit and intended system.

Product type: UHF Reader (with SIRIM)
Reading Distance: 10 to 20 meters (Hand-held test) (Actual scenario test is around 8m)
Antenna Gain: 12dBi
Dimensions: 445 * 445 * 67.5
Weight: 3kg
Power Supply: 1.2 - 4.5W, DC 9-15V
Operating Frequency: 902MHz - 906MHz (adjustable)
Communication: Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options)
Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Mode: Read Always (Default) and Read by Trigger
Output Power: 19dBm - 30dBm
Ingress Protection Rating: IP66
Working Environment: -20°C - 65°C; <85%
Storage Environment: -20°C - 80°C; <85%
RS485 Communication: Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200

Specifications are from the manufacturer's official product page.
The ZKTeco table covers UHF5 Pro and UHF10 Pro (E and F versions); only the lines for UHF10F Pro are shown, and the frequency line marked F applies to this model.
The ZKTeco table gives the dimensions without a unit.
ISD stock, price, Malaysian warranty and delivery are confirmed separately. Confirm the exact model suffix and supplied revision.

Manufacturer source checked 2026-10-27. The supplied unit and local terms require confirmation.
